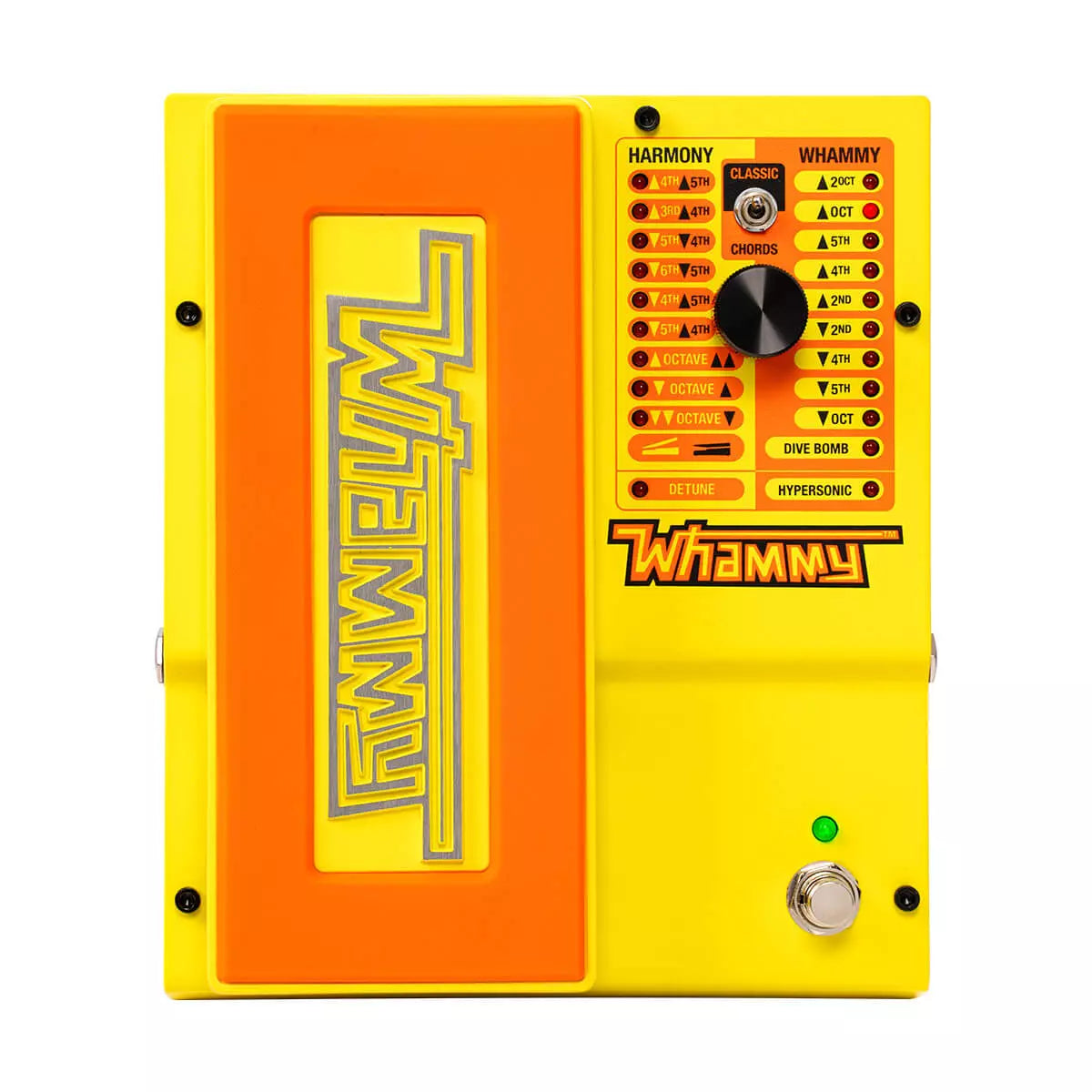

Digitech MonoNeon Signature Whammy Pedal

The DigiTech MonoNeon Whammy pedal goes where no whammy pedal has gone before, with new octave blend modes and up to 3 octaves of HyperSonic pitch shifting. Developed in collaboration with trailblazing bassist MonoNeon, the MonoNeon Whammy delivers mind-blowing pitch manipulation for guitar and bass alike.

Features

• Send your tone soaring with the HyperSonic 3-octave pitch rise
• Create never-before-heard sonic textures with new octaver blend modes
• Ready to integrate with advanced performance rigs with support for 5-pin MIDI control
• Precise Pitch Tracking - primed for both guitar and bass, even extended range instruments
• NEW Octaver Effects
• Familiar Harmony Settings - Six harmony settings including 4th down to 5th up, and 5th down to 4th up
• Built-in expression pedal for pitch bending and detuning
• Classic/Chords Switch - Toggle between the original Whammy algorithm (great for single notes) or the modern chordal algorithm (great for bending whole chords)
• Harmony LEDs - One of these LEDs will light when a Harmony effect is selected, blending your dry signal with the effect signal
• Whammy LEDs - One of these LEDs will light when a Whammy effect is selected - Whammy effects do not add your dry signal to the effect signal
• Glows Under Black Light - Neon Orange and Yellow paint job not only makes MonoNeon Whammy stand out, but glows under black lights on stage

In the box

- MonoNeon Whammy Pedal
- Power Supply
- User's Manual
- 2 Guitar Case Stickers
- Warranty Registration Information Card
- Special MonoNeon Customizing Kit
- Gaffer's Tape - Neon Yellow & Neon Orange
- Mini Permanent Marker

Specifications

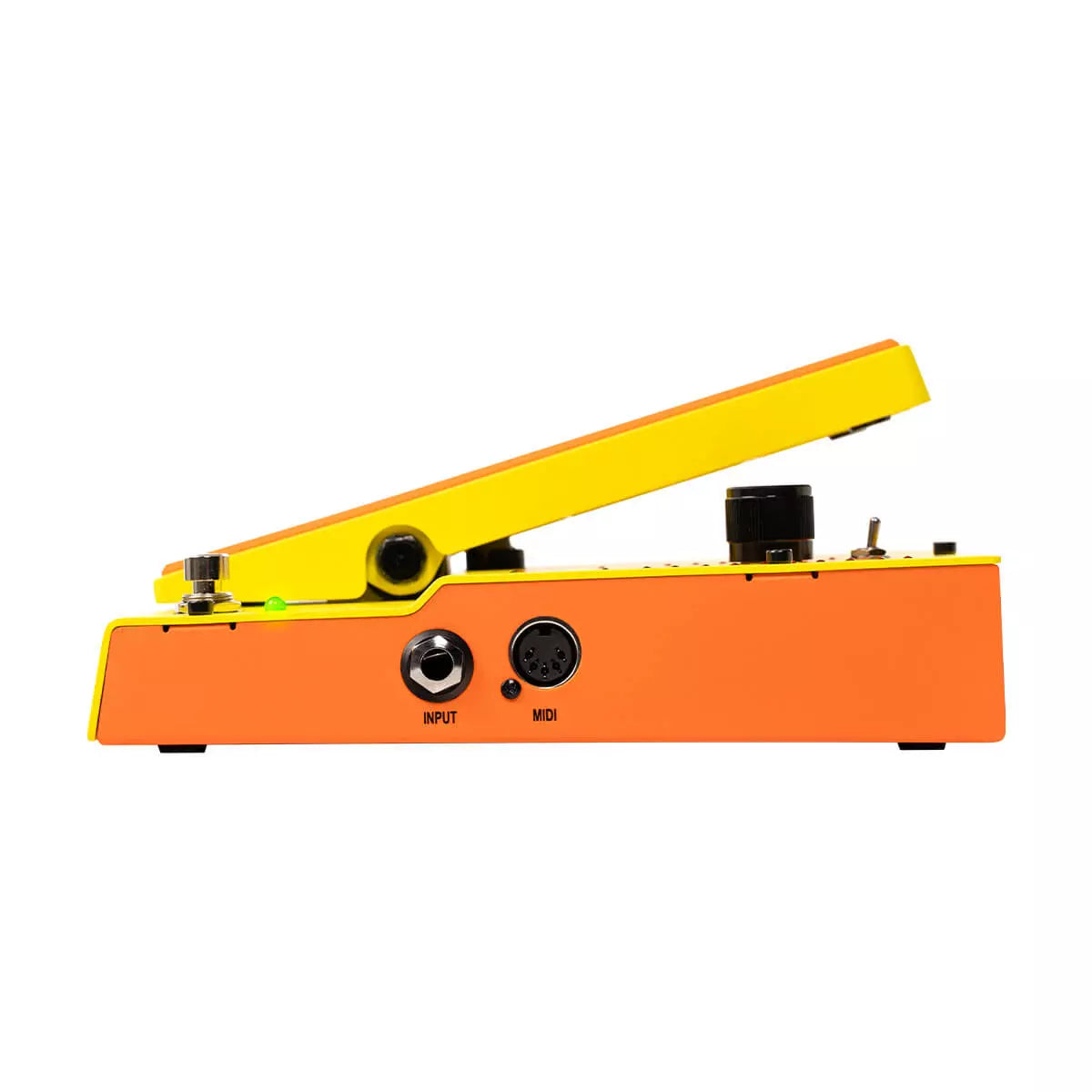

Input / Output
Instrument Input Type: Unbalanced 1/4" TS phone jack
Max Input Level: +5 dBu
Input Impedance: 1 MΩ
MIDI Input: 5-Pin DIN
Output Type: Unbalanced 1/4" TS phone jack
Max Output Level: +10 dBu
Output Impedance: 1 kΩ

Electronics
Frequency Response: 20 Hz to 20 kHz
Signal to Noise Ratio: > 105 dB (A-weighted): ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref =1 dBu w/ unity gain
Sample Rate: 44.1 kHz
A/D Conversion: 24-bit
D/A Conversion: 24-bit

Physical
Dimensions (W x D x H): 6.5" x 7.75" x 2.5" (16.51cm x 19.68cm x 6.35cm)

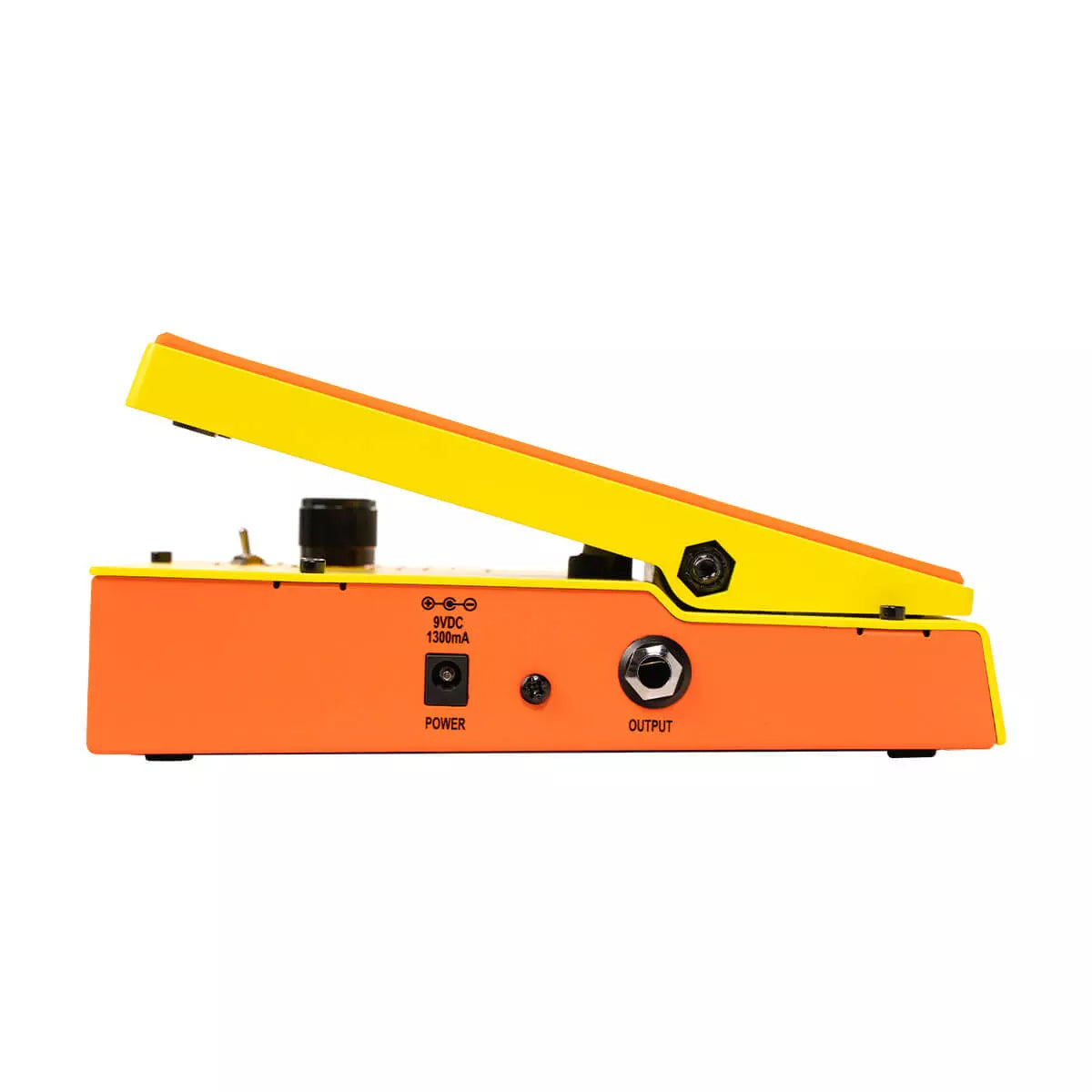

Power
Power Consumption: 2.4 W (265 mA @ 9VDC)
Power Requirements: 9 VDC External Adapter (center negative)
Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative
