PRS HDRX 20 Watt Head Guitar Amp

PRS HDRX 20 – Authentic Hendrix Touring Circuit 20-Watt Tube Amp Head

The PRS HDRX 20 delivers the unmistakable power, clarity, and warmth of late-60s British amps in a compact, lower-wattage design. Built around PRS’s Authentic Hendrix Touring Circuit, this amp is inspired by one of Jimi Hendrix’s personal stage amps, believed to have been used at Woodstock. Paul Reed Smith and PRS amp designer Doug Sewell meticulously studied the original in 2018 to capture its character and feel.

With sparkling highs that never turn harsh and a smooth breakup that’s rich in harmonic content, the HDRX 20 excels at both aggressive and sweet tones. Its 5881 power tubes deliver thick, articulate sound that responds beautifully to touch, while modern enhancements make it far more versatile and user-friendly than its vintage inspiration.

The HDRX 20 features internally bridged channels with independent Treble and Bass volume controls, letting you blend lead and bass tones without an external jumper cable. The addition of a Master Volume gives you precise control over power amp drive, allowing cranked tones at manageable volumes without the need for an attenuator.

Key Features:

• 20-watt all-tube head with Authentic Hendrix Touring Circuit
• (2) 5881 power tubes for thick, organic tone and smooth breakup
• Internally bridged channels with independent Treble and Bass volume controls
• 3-band TMB tone stack for precise EQ shaping
• 2-way bright switch for added high-end presence
• High-mid gain switch and presence control for tone refinement
• Master Volume for easier low-volume playing
• Black Tolex covering with matching black piping and trim

Specifications

Amplifier Type

• Configuration: Head only
• Wattage: 20W
• Channels: 2 (internally bridged)
• Power tubes: (2) 5881
• Preamp tubes: (3) 12AX7
• Preamp positions:
  • V1: Input
  • V2: Cathode follower
  • V3: Phase inverter

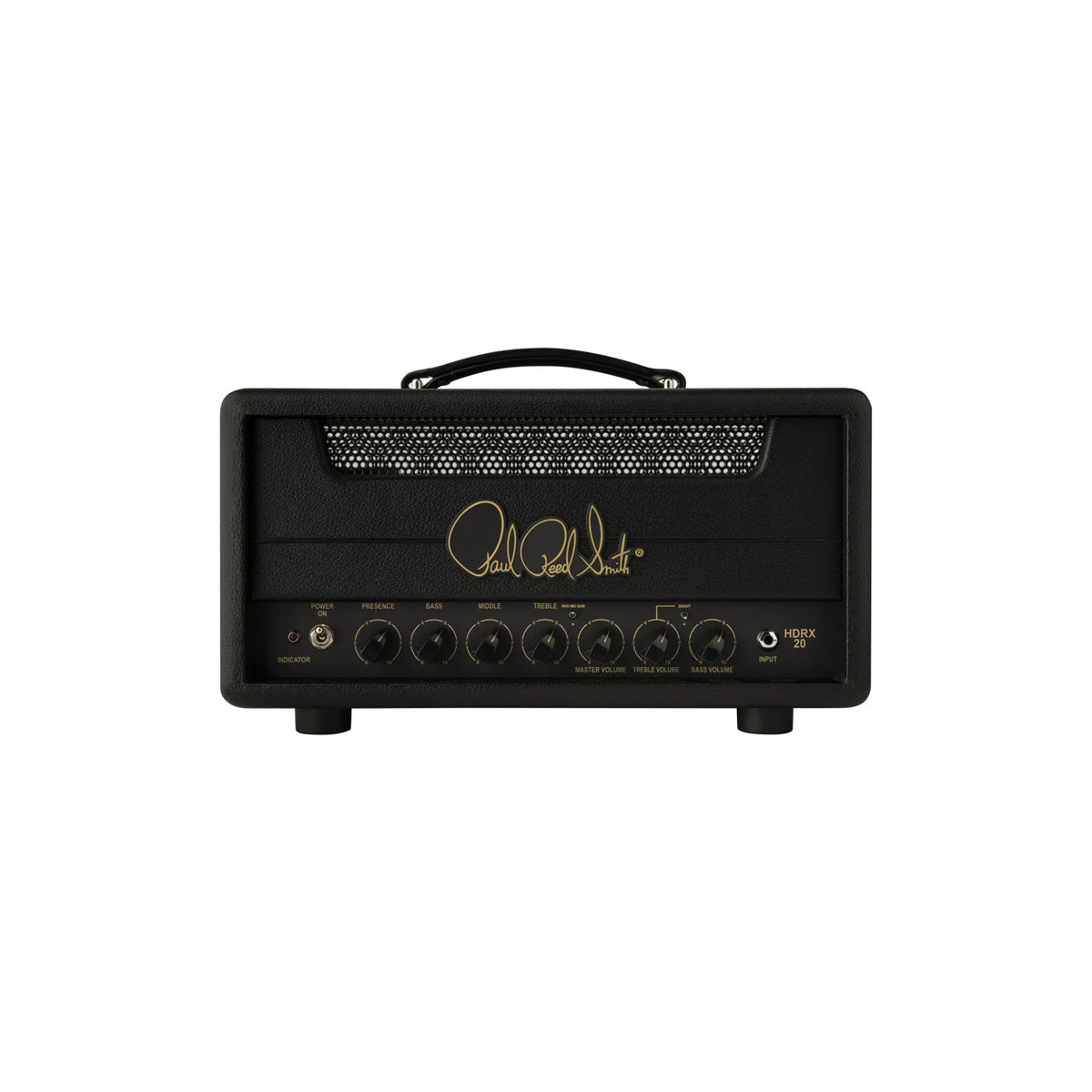

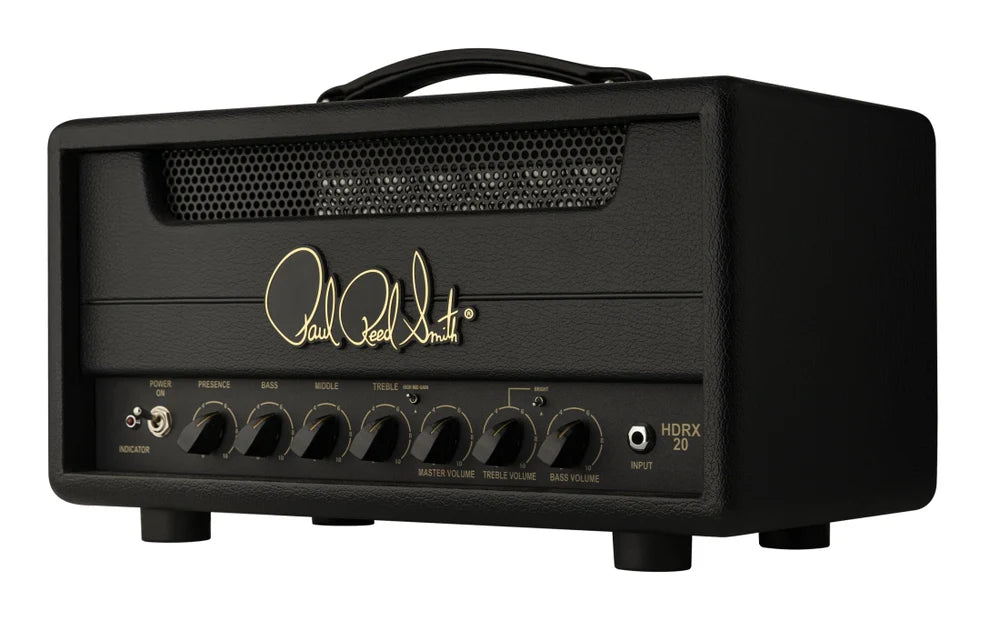

Front Panel Controls

• Channel 1: Bass volume
• Channel 2: Treble volume, Bright (off/bright)
• Common: Presence, Master volume, Bass, Middle, Treble, Mid gain (off/on)

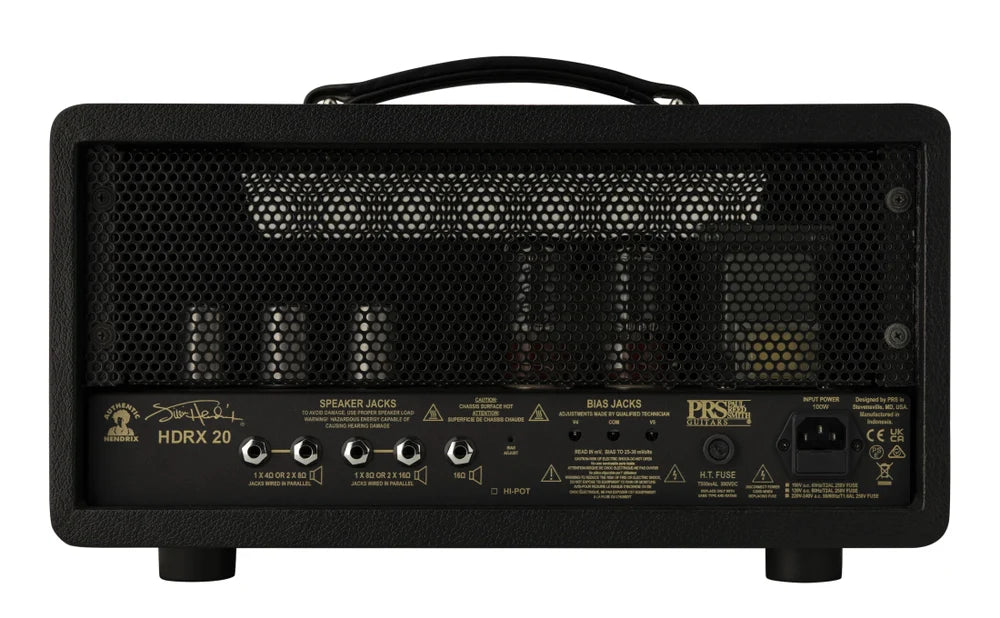

Back Panel Features

• Inlet: IEC with integrated fuse
• Output jack configuration / ohm selection: (2) 4 ohm, (2) 8 ohm, (1) 16 ohm
• Bias: Adjustable (with monitoring jacks and adjustment potentiometer)
• B+ fuse holder: T500mAL / 500V fuse

Build and Dimensions

• Covering: Black Tolex
• Piping: Black
• Trim panel: Black Tolex
• Width: 17.25"
• Depth: 9"
• Height: 9"
• Weight: 27.6 lbs
• Country of origin: China
